1060 Color Coated Aluminium Coil
The 1060 color-coated aluminum coil is made from 1060 industrial pure aluminum with a purity exceeding 99.6%, featuring a decorative coating applied through surface treatment. It combines the high plasticity, corrosion resistance, and thermal/electrical conductivity of pure aluminum with the vibrant colors and weather resistance of the coating, making it suitable for lightweight, corrosion-resistant structural components with low strength requirements.
MESSAGE
Overview
1060 color coated aluminum coil is a composite material with high purity 1060 aluminum alloy (aluminum content ≥99.6%) as the substrate, coated with organic coating after surface pretreatment. The product forms color coating on the surface of aluminum coil by roller coating or spraying process, common coatings include polyester (PE), fluorocarbon (PVDF), etc. After curing at a high temperature of about 200 ℃, it combines the strength of metal with the decorative and protective properties of organic coating. 1060 alloy's high ductility provides the basis for complex molding, while the color coating process gives it weathering, corrosion resistance and diversified appearance, which is widely used in construction, household appliances, packaging, and other industries. It is widely used in construction, household appliances, packaging and other fields.
| Alloy | 1060 Color Coated Aluminium Coil |
| Temper | O, H12, H14, H16, H18, etc. |
| Thickness | 0.04mm(PE)/0.18mm(PVDF)-3mm |
| Width | Max 2650mm |
| Color | Normal(RAL or Pantone), Metallic, Pearly, Shining Pearl Flower, Wrinkle, Marble, Wooden, Chameleon |
Feature
PE:Coating Thickness:Min 16Mic
1.Highgloss
2. Multi-choice colors
3. Impact resistance
4. Easy for processin
5.Indoor-8-10years Warranty
PVDF:Coating Thickness:Min 25Mic
1.Excellent weather-proof durability
2. Anti-ultraviolet
3. High erosion resistance
4. Stable color and gloss
5. Good mechanical processing performance
6. Abrasion resistan
7.Anti-impact
8.High flexibility
9.Outdoor-above 15 years Warranty
Application

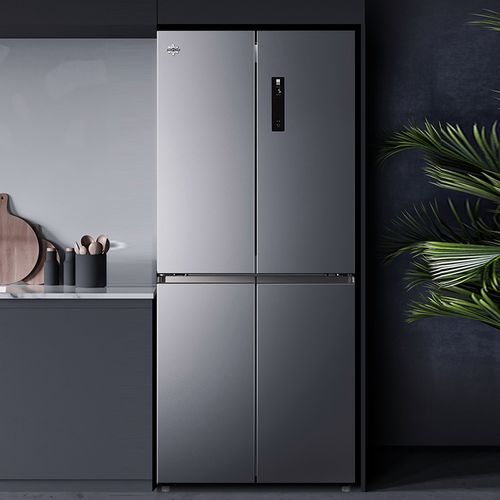

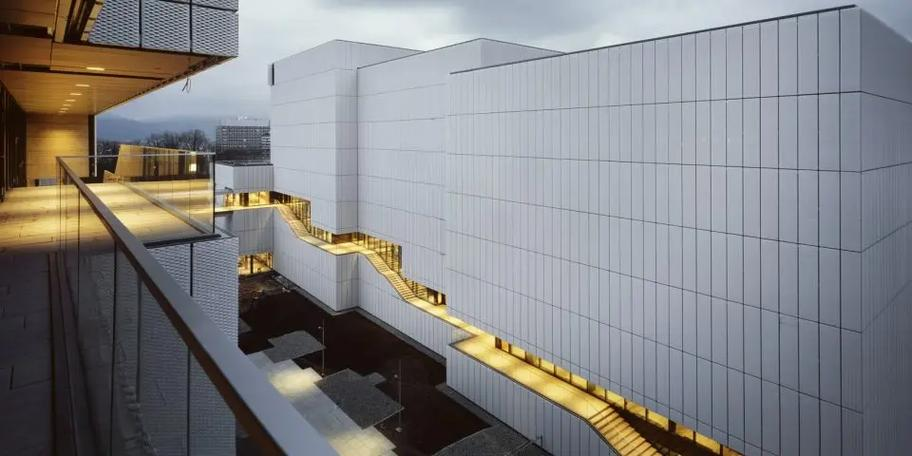

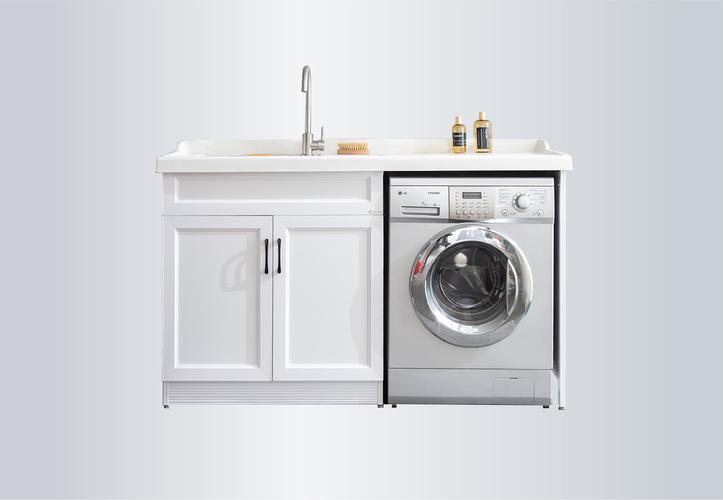

1060 coated aluminum coil has a vast application, such as cladding, indoor decoration, exterior wall decoration, household appliances panels, railroad tank cars, etc.
