3003 Color Coated Aluminium Coil
The 3003 coated aluminum coil, one of Exceed’s flagship products, offers an exceptional balance of strength, formability, anodizing compatibility, and corrosion resistance. This versatile material is extensively utilized in the construction sector, including applications such as roofing and wall cladding, ceiling systems, and corrugated sheets. Its properties also make it ideal for thermal insulation solutions in heating and cooling systems.
MESSAGE
Overview
3003 color coated aluminum coil is a composite material with a 3003 aluminum alloy substrate coated with organic layers (e.g., polyester, PVDF) after chemical pretreatment. The 3003 alloy, an Al-Mn corrosion-resistant aluminum, contains ~97.5%-99.0% aluminum, 1.0%-1.5% manganese, and trace copper/iron. It combines formability, corrosion resistance, and moderate strength. The coating process forms a dense protective film via high-temperature curing, enhancing weather resistance, aesthetics, and functionality.
| Alloy | 3003 Color Coated Aluminium Coil |
| Temper | HO，H12，H14，H16，H18，H22，H24，H26，H28，etc |
| Thickness | 0.04mm(PE)/0.18mm(PVDF)-3mm |
| Width | 20-2650mm |
| Color | Normal(RAL or Pantone)，Metallic，Pearly，Shining Pearl Flower，Wrinkle，Marble，Wooden，Chameleon |
Feature
PE:Coating Thickness:Min 16Mic
1.Highgloss
2.Multi-choice colors
3.Impact resistance
4.Easy for processin
5.Indoor-8-10years Warranty
PVDF:Coating Thickness:Min 25Mic
1.Excellent weather-proof durability
2.Anti-ultraviolet
3.High erosion resistance
4.Stable color and gloss
5.Good mechanical processing performance
6.Abrasion resistan
7.Anti-impact
8.High flexibility
9.Outdoor-above 15 years Warranty
Application
1.Interior Applications:

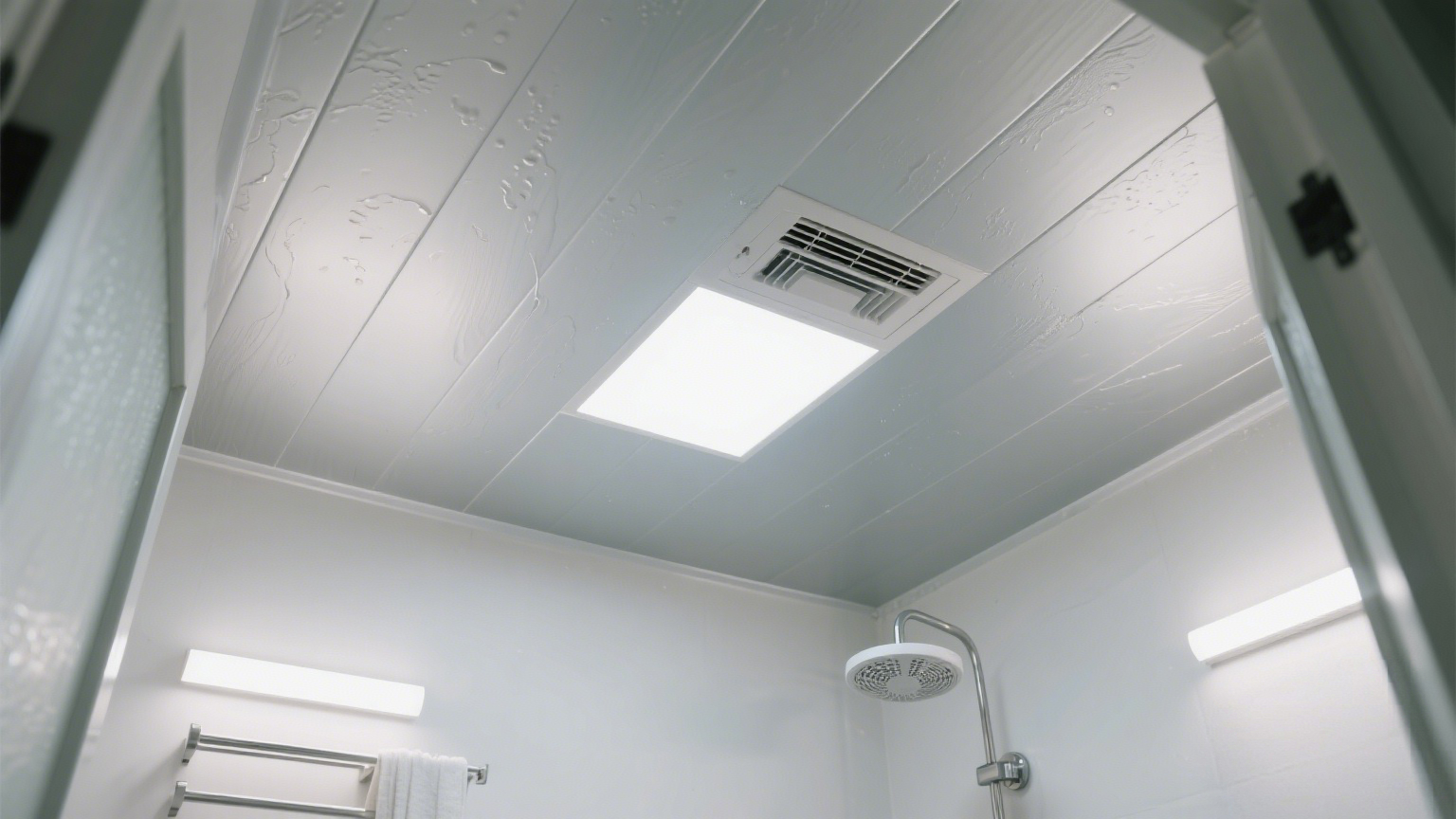

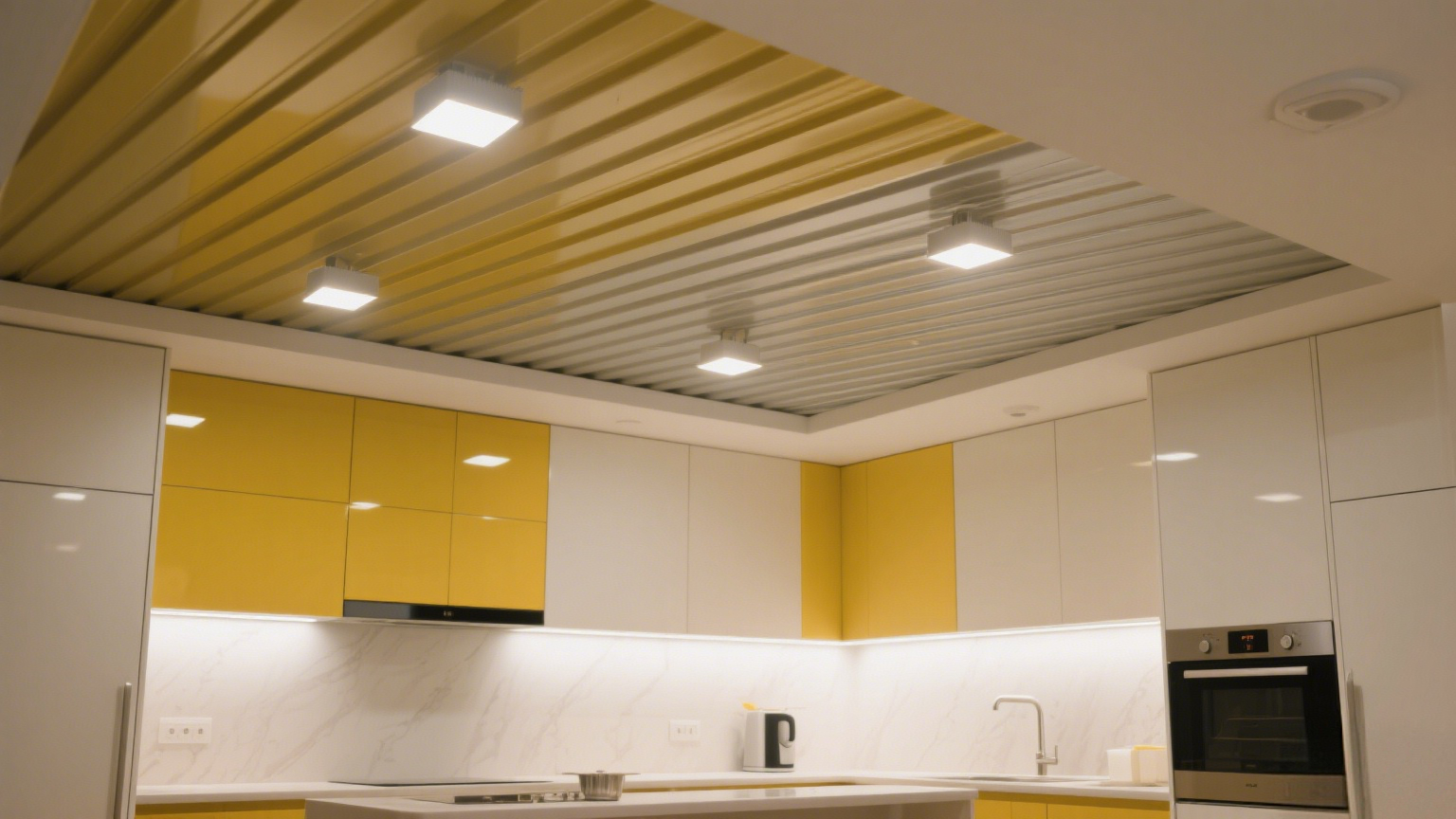

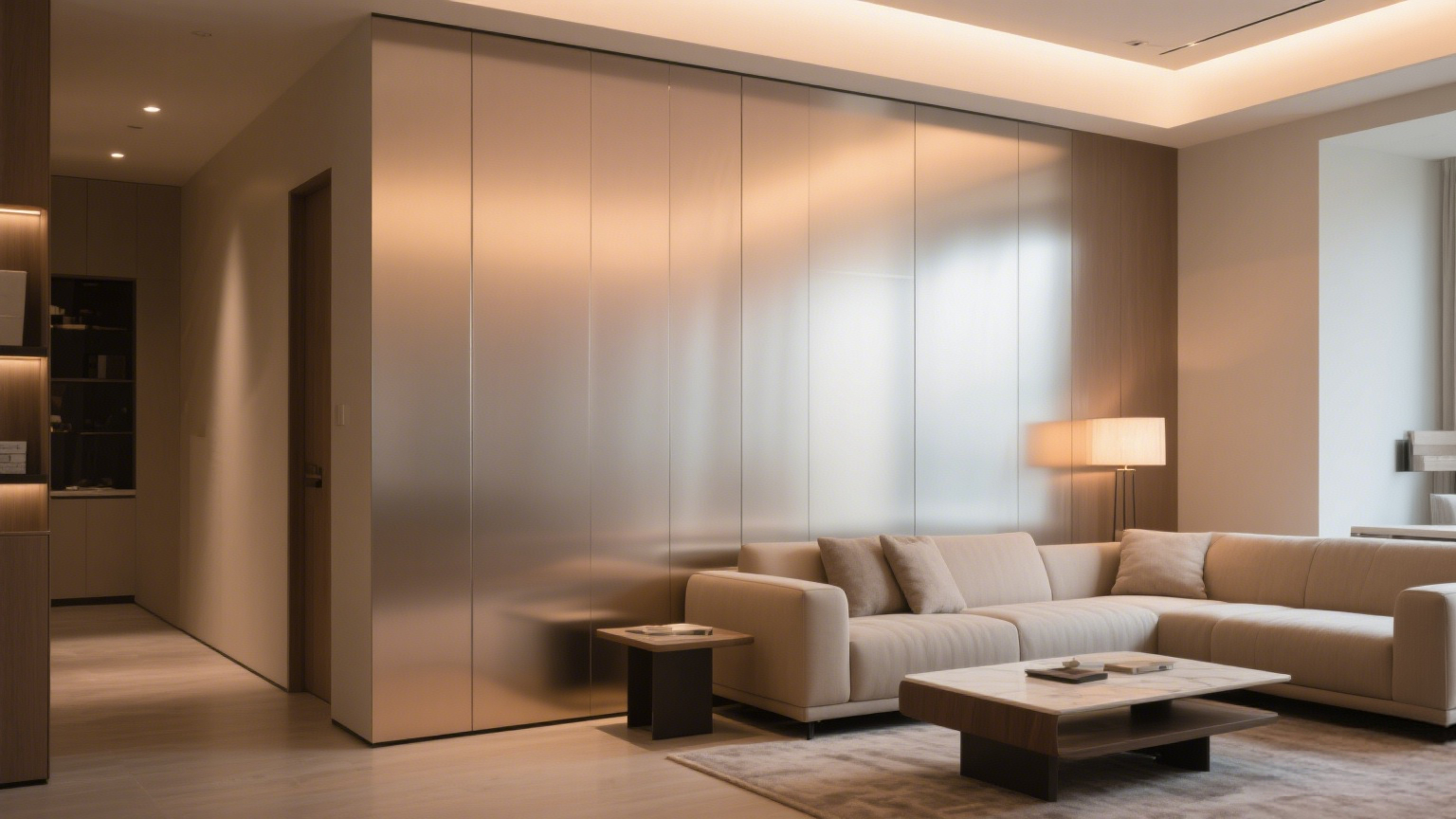

Laminated wall coverings, ceiling panels, bathroom surfaces, and kitchen ceilings.
2.Exterior Applications:

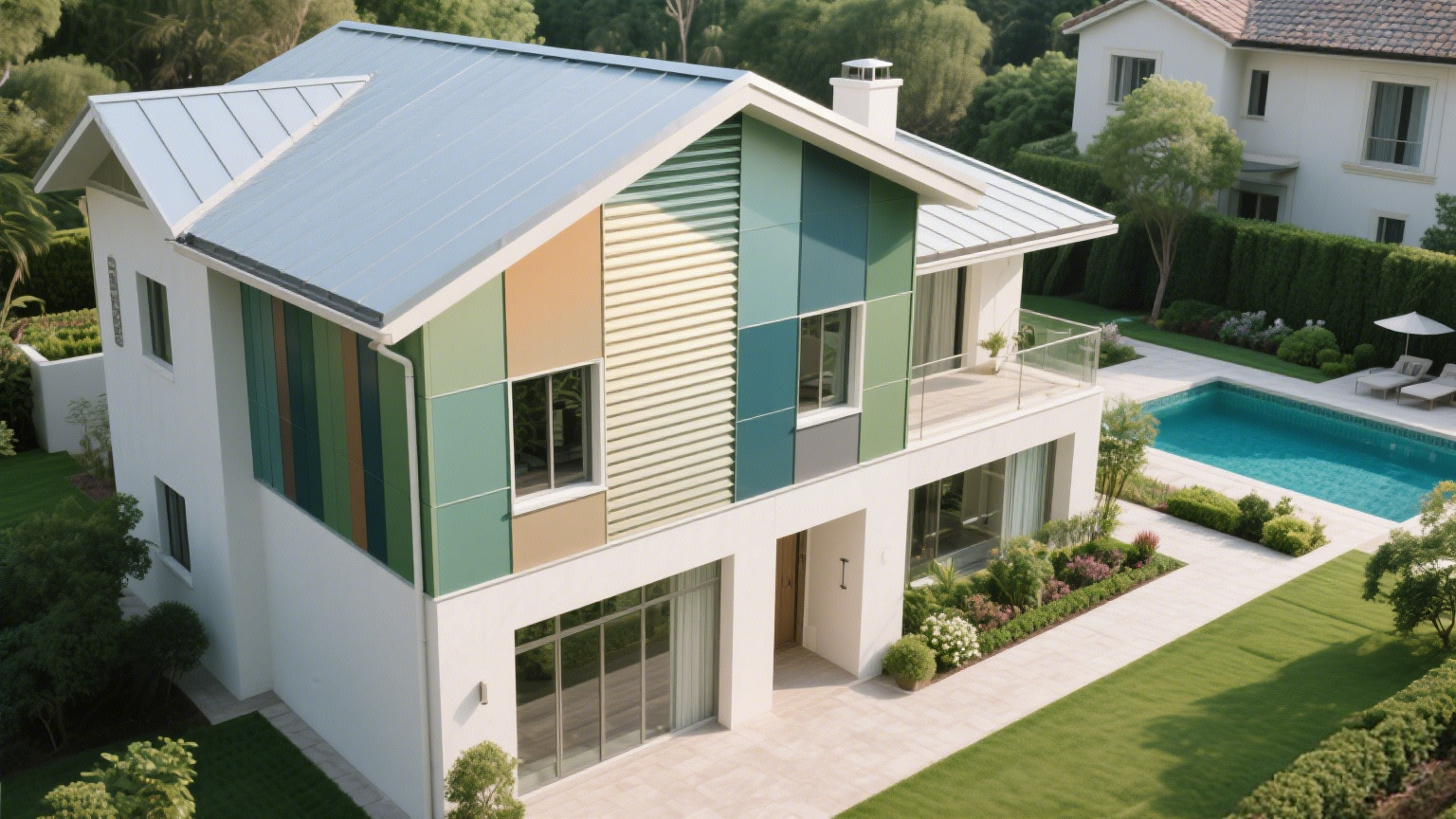

Outdoor wall cladding, building facades, roofing materials, Venetian blinds, and adjustable louvers.
3.Advertising Uses:
Signboards, billboards, and retail display advertising panels.
