Aluminum Checker Plate

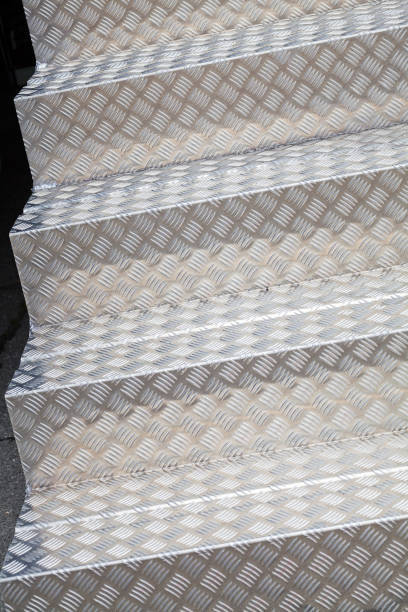

Aluminum checker plate, also known as aluminum tread plate, or aluminum chequered plate, is a highly decorative and functional metal plate with a raised pattern on one side. It is manufactured by rolling plain aluminum sheets through a press to create convex patterns on the surface, enhancing both aesthetics and slip resistance.
MESSAGE
Overview
Aluminum checker plate, or tread plate, is a special aluminum plate with a surface pattern of raised diamond or bar - shaped projections. These patterns are both aesthetically pleasing and anti - slip, making it suitable for safety - critical applications. Made of high - quality aluminum alloys, it is durable and corrosion - resistant. It is widely used in transportation, flooring, stair and construction industry, where its unique design and functionality stand out.
| Alloy | 1100，1050，1060，3003，3005，3105，5005，5052，5083，5454，5754，6061，6063，6082 |
| Temper | HO，H12，H14，H16，H22，H24，H26，H32，H36 |
| Thickness | 1mm-6mm |
| Width | 1000mm-2200mm |
| Length | 1000mm-6000mm |
Feature
1. Durability: Aluminum tread plate is highly durable and resistant to wear and tear, making it ideal for high-traffic areas or applications requiring robust material.
2. Corrosion Resistance: Aluminum naturally forms a protective oxide layer, making it highly resistant to rust and corrosion, especially in harsh environments or outdoor use.
3. Slip Resistance: The raised diamond or tread pattern provides excellent slip resistance, making it a popular choice for flooring, stairs, and ramps in industrial or commercial settings.
4. Lightweight: Compared to steel or other metals, aluminum tread plate is lightweight, which makes it easier to handle, transport, and install while still offering strength.
5. Aesthetic Appeal: The distinctive diamond pattern gives aluminum tread plate a visually appealing and professional look, often used for decorative purposes in addition to functional applications.
Application
1.General pure aluminum checkered plates: These are aluminum alloy checkered plates processed from 1060 and 1100 aluminum sheets. They can adapt to normal environments and are priced affordably. They are commonly used in cold storage facilities, flooring, packaging, and other applications.
2.Aluminum-manganese alloy checkered plates: Processed mainly from 3003 aluminum, these plates are also known as anti-rust aluminum. Their strength is slightly higher than that of ordinary aluminum alloy tread plates, and they have some anti-rust properties. However, their hardness and corrosion resistance are lower than those of the 5000 series. Therefore, these products are not suitable for scenarios with strict anti-rust requirements, and are often used in truck bodies, cold storage floors, etc.

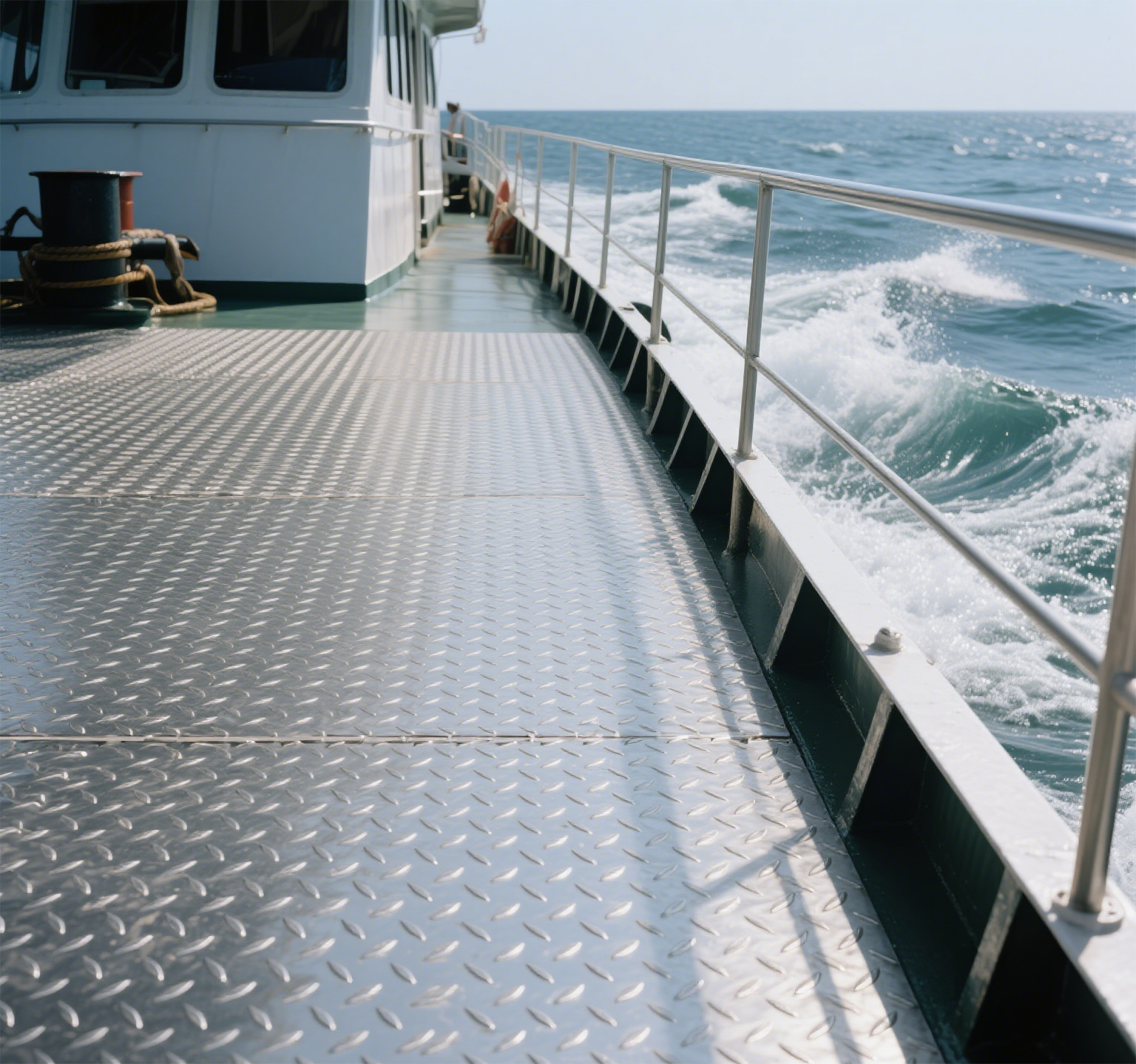

3.Aluminum-magnesium alloy checkered plates: Processed from 5000 series aluminum materials such as 5052 or 5083, they feature excellent corrosion resistance, high hardness, and outstanding anti-rust performance. They are typically used in special applications, such as shipbuilding, automotive lighting manufacturing, and humid environments. Due to their high hardness, they also have a certain load-bearing capacity.
