1060 Embossed Aluminum Plate
The 1060 embossed aluminum plate is made from 1060 pure aluminum with a purity of ≥99.6%. Its surface features 3D patterns created by roll embossing or stamping, such as orange peel or diamond patterns.
MESSAGE
Overview
1060 embossed aluminum plate is a type of industrial pure aluminum sheet with an aluminum content of ≥99.6%, belonging to the 1000 series aluminum alloy. It is processed through embossing technology to form various surface patterns (e.g., diamond, orange peel, or custom designs), enhancing its aesthetic appeal and non-slip properties. This material is widely recognized for its high plasticity, excellent corrosion resistance, and good electrical/thermal conductivity, making it a cost-effective solution for applications requiring low strength but high formability.
Specification
Alloy： 1060 Embossed Aluminum Plate
Temper: H12，H14，H16，H18，H22 ，H24，H26，H28
Thickness: 0.2mm-1.5mm
Width: 20mm-1600mm
Surface Types: orange peel，variant orange peel，mirror finish orange peel patterns，diamond，hammered，etc
Feature
1.High Plasticity & Formability
Cold/Hot Rolling Compatibility: Easily processed via stamping, bending, and deep drawing without cracking.
Surface Pattern Flexibility: Supports custom embossing designs for decorative or functional purposes (e.g., anti-slip floors).
2.Decorative Appeal
Embossed patterns enhance visual appeal; customizable in colors and designs.
3. Excellent Corrosion Resistance
Naturally forms a protective oxide layer, resistant to moisture, chemicals, and atmospheric corrosion.
4. Lightweight & Cost-Effective
Density: 2.71 g/cm³ (about 1/3 of steel).
Lower production costs compared to alloyed aluminum plates (e.g., 3003, 5052).
5. Non-Magnetic & Non-Toxic
Safe for food contact (e.g., kitchen utensils) and medical applications.
Application
1. Architectural & Decorative

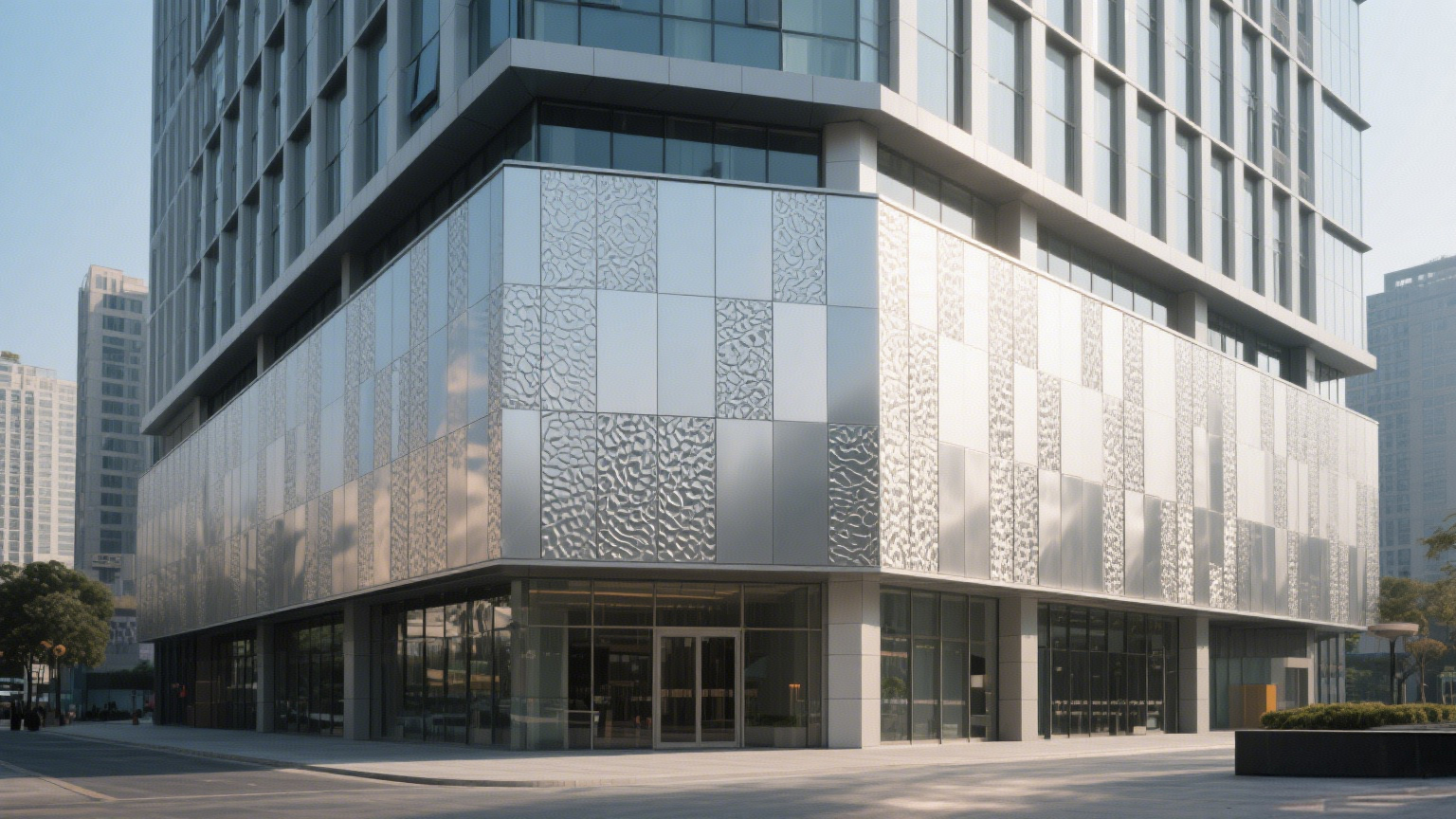

Exterior Cladding: Facades, curtain walls, and roofing due to weather resistance.
Interior Design: Ceiling tiles, wall panels, and elevator interiors with embossed textures.
2. Transportation

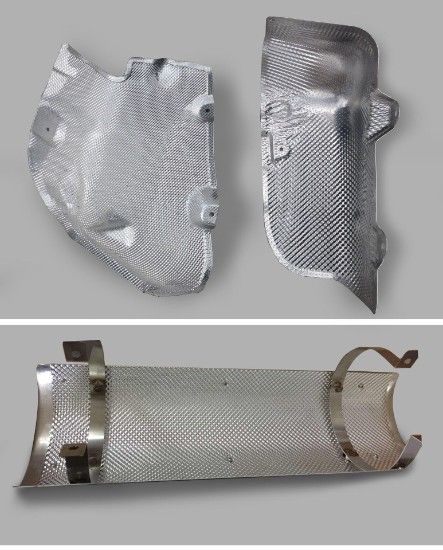

Automotive: Heat shields, battery enclosures (for EVs), and interior trims.
Public Transport: Bus/train body panels and flooring for anti-slip and lightweighting.
3. Electrical & Electronics
Heat Sinks: Dissipate heat in LED lights, power supplies, and 5G base stations.
EMI Shielding: Enclosures for electronic devices to prevent interference.
4. Industrial & Manufacturing
Chemical Instruments: Tanks, pipes, and reactor linings due to corrosion resistance.

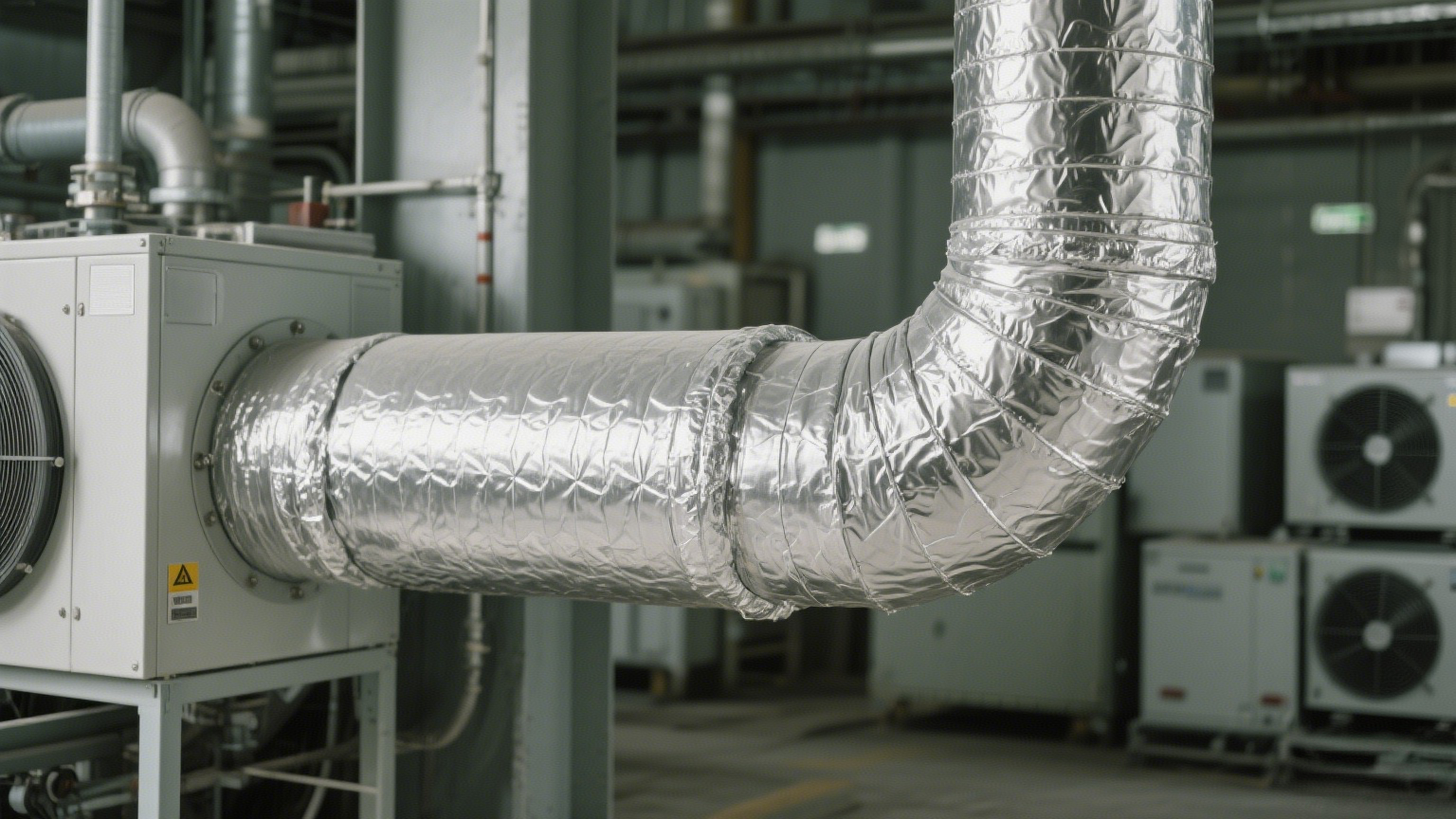

Thermal Insulation: Wrapping for HVAC systems and refrigeration units.
5. Consumer Goods
Kitchenware: Non-stick pans, utensil handles, and refrigerator liners.

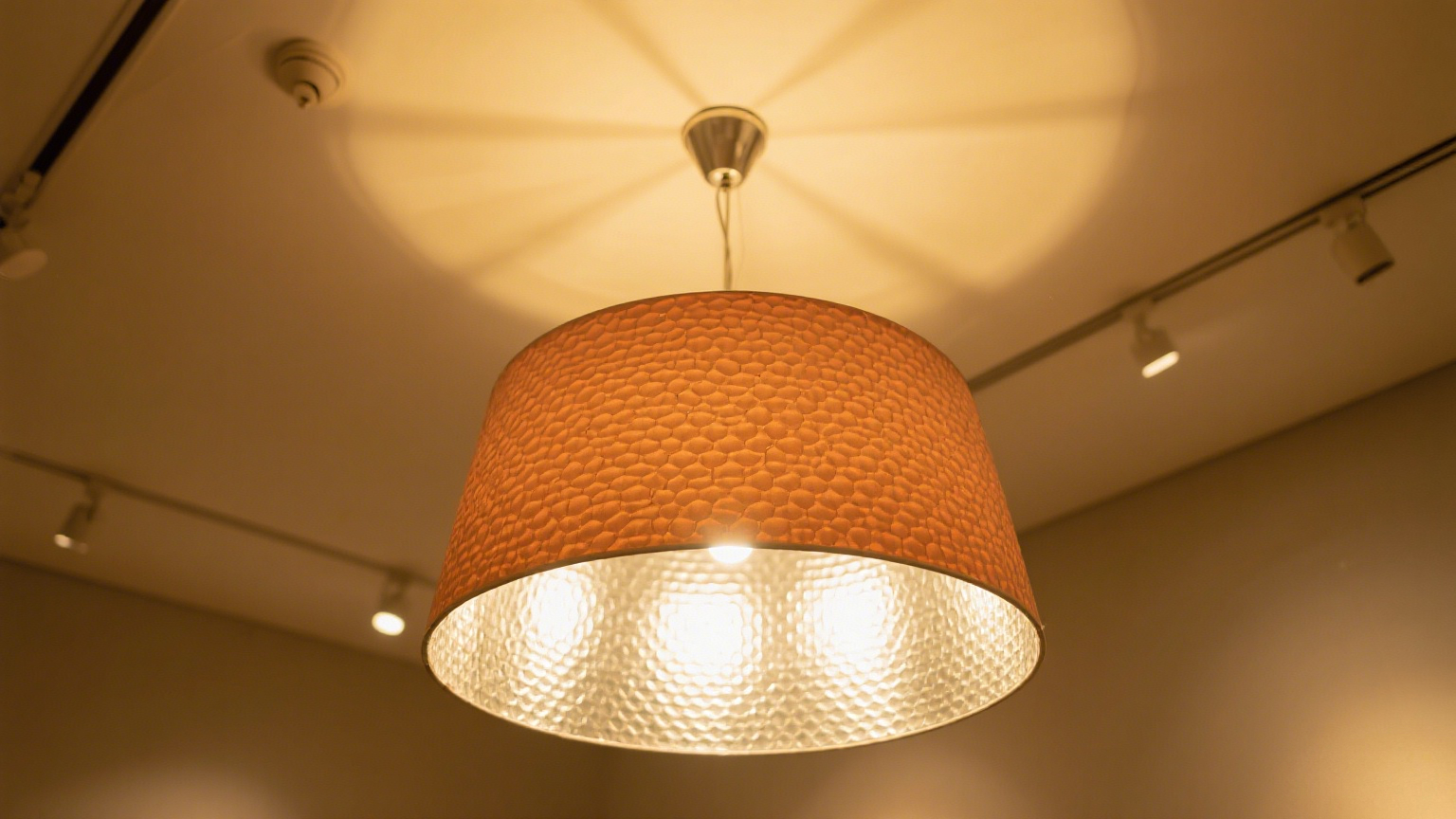

Lighting: Lampshades and reflectors for uniform light distribution.
